LCD Screen 32A 22kw Public EV Charger 3 Phase Electric Car Charging station
Quick Details:
Model Number: GS22-AC-B01
Rated Voltage: 400V AC
Rated Current: 32A
Rated Output Power: 22kw
Charging Port: Type 2 Cable
Cable Length: 3.5M/ Customized
Communication: 3G/4G/5G, WIFI or Bluetooth Optional
Start Mode: Plug and Play/RFID card/App
Function: APP Control, screen display, Voltage Monitoring
Advantages:
1. Easy to install : Only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.
2. Simple to charge : Plug & Charge, or card to charge, or controlled by App, RFID , Wifi ,it depends on your choice.
3. Compatible All EVs : It's built to be compatible with all the EVs with the type 2 plug connectors. All the charging pile passed CE and cable length adopted high quality material TPE and TPU
Specifications:
| Product Name | EV Charging Station (WallBox) |
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Rated Current | 32A | 16A | 32A |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A |
| Rated Power | 7KW | 11KW | 22KW |
| Package | Unit Size | 340*285*147mm |
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS |
| Communication | WIFI | Optional |
| 3G/4G/5G | Optional |
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) |
| User Interface | Charging Port | Type 1/ Type 2 |
| Cable Length | 3.5M or customization length |
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized |
| Start Mode | Plug&Play / RFID Card / APP |
| Emergency Stop | YES |

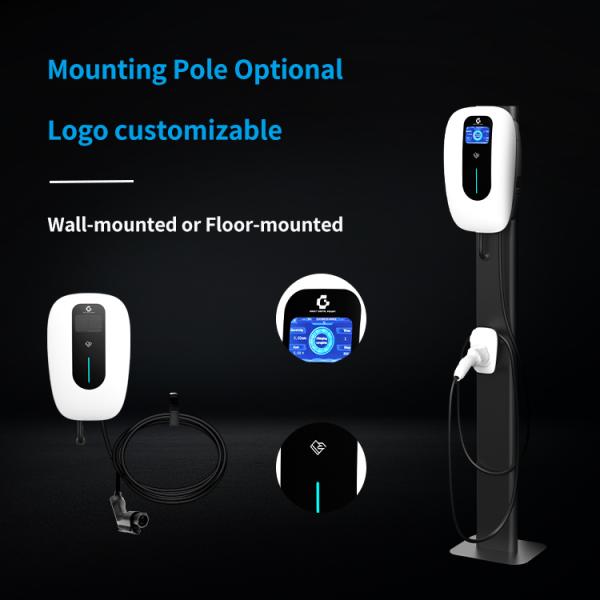

| Environment | Installation | Wall-mounted Pole Mounted |
| Work Temperature | -25℃-+50℃ |
| Work Humidity | 5%-95% |
| Work Altitude | <2000M |
Sichuan Tianfu Xiongzhou Group was founded in 2010, located in Xincheng District, Jianyang City, Sichuan Province. We are committed to the R&D and sales of IT intelligent products. In 2016, Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was established, we focus on the R&D and sales of intelligent charging piles, plugs, connectors and other auto parts. We can design and manufacture AC charging piles in accordance with China (GB)/European Union (CE)/United States (UL) standards and software platforms equipped with OCPP 1.6 protocol according to customer requirements.
Our goal is not only to provide customers with products, complete solutions for product design, manufacturing and pre-sales & after-sales services, complete solutions to meet customer needs as the premise, with the premise of satisfying customers' needs and establishing long-term strategic partnerships with customers, ultimately achieving a win-win situation.
Note
1.LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP are optional functions,all the information is for reference only, it doesn't mean the device you get have all such functions.
2.We are committed to the continuous improvement and update of the prod product hardware and software will continue to upgrade, the information provided is subject to change without prior notice.
Steps for adding APP device Download method:
For IOS: Search Smart Life in the Apple Store to downtoad and install it.
For Android: Search Smart Life in the Google Stare to download and install it.
Step 1 Add Device: Click "Add Device"
Step 2 Connect the WIFI: When adding a device for the first time, connect the device and mobile phone under the same WIFI.
Step 3 Loading: Wait until the device is loaded.
Step 4 Loading completed: After loading, click Add to enter the charging interface.
